GPU Capacity Planning for Small AI Teams: VRAM, PCIe Lanes, NUMA, and Storage Throughput

Why Small AI Teams Need Proper GPU Capacity Planning

Studies show that nearly 67% of small AI teams and organizations misalign their first hardware with the actual needs of their workload, and 40% of them either over-provision or under-provision in ways that not only affect their cost, but also slow the development.

These issues appear when teams focus only on VRAM and ignore linked limits such as PCIe bandwidth, NUMA layout, and storage throughput. A wrong graphics processing unit (GPU) choice drains budgets, while a large PCIe bottleneck can pause training for months. These problems block progress for groups that work with AI models, deep learning, and other intensive processes.

ServerMania builds on this need with custom designs tuned to the results of strong planning, and each system aligns modern GPUs, balanced storage, and reliable system RAM. This way, your setup fits your budget and workflow, and you get a practical path forward.

See Also: What is an AI Server?

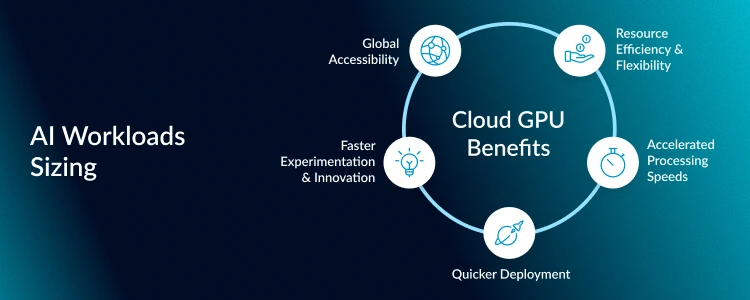

Sizing Your AI Workload

Knowing your workload profile shapes every hardware decision, and each category places different pressure on memory flow, I/O limits, and compute paths.

For instance, LLM inference leans on high VRAM, while the fine-tuning pushes memory use several times higher. On the other hand, video tasks strain PCIe bandwidth, while multi-modal models reach the highest load across memory and compute.

This framework helps you size GPU capacity with clear steps around AI models, performance, deep learning, and your graphics processing unit needs.

1. LLM Inference

Inference is memory-bound and needs high VRAM for consistent results; therefore, in order to keep steady throughput, the VRAM must align with your sequence length.

2. LLM Fine Tuning

Fine-tuning uses three to four times more VRAM than inference. Planning memory expansion protects workflow output, and larger models increase pressure on system RAM and storage.

3. Stable Diffusion

Batch choices raise or lower resource pressure. Larger batches raise both compute and memory load, while resolution settings also shift how modern GPUs handle each step.

4. Computer Vision

CV workloads depend on high storage throughput. Slow disks block progress even with strong modern GPUs. Higher frame rates increase read pressure on your storage stack.

5. Video Processing

Video tasks reach PCIe bandwidth limits early; therefore, the proper lane allocation avoids stalls during processing, and smooth flow needs predictable transfer rates between nodes.

6. Multi-Modal Models

These models need the most VRAM headroom. Compute demand grows with each added input type, and growth in input size raises the load on storage and memory paths.

Here’s an easy-to-scan framework overview:

See Also: Best GPU Server for AI and Machine Learning

Graphic Processing Unit VRAM: Accurate Planning

To size your VRAM requirements, you need to look at model weights, cache growth during inference, activation overhead, and the extra memory your workflow needs. This directs every hardware choice for GPU capacity and your graphics processing unit.

In short, you must shape your plan around model scale, batch behavior, and context length!

These steps protect performance for AI models and deep learning tasks across training and inference:

Model Weight Needs

Model weights form the base memory load, and you can acquire the correct weight size with a formula:

Parameters × Bits ÷ 8 ÷ 1024³.

The FP16 formats require two bytes per parameter and serve as the default for many workflows due to strong accuracy retention. INT8 compression reduces the weight size to one byte per parameter and supports smaller memory budgets with minor accuracy loss, while four-bit formats reduce memory even further for teams optimizing expenditure.

These weight calculations anchor the rest of your VRAM plan and establish the minimum capacity your hardware must support.

KV Cache Growth

KV cache grows during inference and depends on context and user load.

You calculate KV memory with this formula:

2 × Layers × Context × Batch × Hidden × Bytes ÷ 1024³.

Growth becomes significant when context expands from short inputs to long sequences, and multi-user setups raise cache size for every session. This drives you to match VRAM with heavy AI models and the traffic your team expects.

Activation Overhead

Activations increase VRAM across every forward step. You add 20% to 30% above weights and cache to hold a stable output. Larger batches raise activation size in a nonlinear way, so doubling the batch adds about 60% memory instead of doubling it.

CUDA & System Margin

CUDA use adds one to two gigabytes of fixed overhead.

This space keeps the GPU stable during peak load. You should then add a safety margin of 20% to 30% percent to avoid memory faults. This margin becomes more important when you run multiple models on the same node and also protects results when storage and RAM interact with large memory transfers.

PCIe Lane Allocation & Bottleneck Analysis

PCIe planning determines how reliably the system moves data between GPUs, CPU, and high-speed storage. Bandwidth affects parallel workloads, especially training methods that synchronize gradients or split large AI models across devices.

So, when PCIe limits appear, you’ll see slow scaling, reduced performance, and an uneven utilization even if your graphics processing unit has strong compute ability. Clear allocation rules help small teams avoid hidden constraints that surface only after deployment, so let’s go through everything important.

Understanding PCIe Bandwidth

PCIe bandwidth varies by generation and affects the speed of GPU to CPU transfers!

For instance:

• Gen 3 x16 reaches 15.75 GB per second
• Gen 4 x16 reaches 31.5 GB per second
• Gen 5 x16 reaches 63 GB per second

These GB per second rates matter most during model parallelism and gradient synchronization, where frequent communication amplifies any bottleneck. Hence, single GPU inference rarely depends on full bandwidth because traffic stays low. This makes PCIe planning workload-specific rather than uniform.

x8 Vs. x16 Impact on Workloads

Lane width influences scaling behavior because not all workloads communicate in the same patterns:

• Single GPU inference or videotasks show less than two percent difference between x8 and x16, as traffic stays light and predictable.
• The distributed data parallel training slows by 5% to 15% percent under x8 due to synchronization of gradients, which demands frequent cross-device messages.
• Model parallel workloads are slowed by 20% to 40% under x8 because of the constant activation exchange across accelerators.

These details help many AI teams and organizations match PCIe settings with AI tasks that move a large amount of intermediate data across devices.

CPU Lane Availability & Platform

The CPU lane counts limit the number of GPUs that receive full x16 connectivity. Here’s an example:

• Intel Xeon W-3400 provides 64 PCIe lanes and supports stable 4-GPU configurations at full x16 bandwidth.
• AMD EPYC 9004 exposes 128 PCIe lanes and enables reliable 8-GPU designs that maintain full x16 connectivity.
• Intel Xeon Scalable (Ice Lake or Sapphire Rapids) offers 64 lanes per socket and supports dual-socket builds that reach 128 total lanes.
• AMD Threadripper PRO 5000 WX delivers 128 PCIe lanes and allows workstation systems to operate 4–7 GPUs at x16, depending on layout.
• Intel Core i9 13th/14th Gen includes 20–28 PCIe lanes and limits systems to 1–2 GPUs that operate at reduced x8 speeds.
• AMD Ryzen 7000 Series provides 24 PCIe lanes and supports 1 high-performance GPU with limited headroom for extra expansion.

Note: These rules reduce the risk of uneven GPU utilization during deep learning projects.

Your NVLink Considerations

NVLink offers 600 to 900GB per second of GPU-to-GPU bandwidth, many times faster than PCIe. This becomes valuable when models do not fit inside one GPU and must be split across devices.

NVLink improves training stability but increases the system cost by a wide margin. Small teams benefit most when workloads need heavy cross-GPU traffic. When tasks rely on independent batches or single GPU inference, NVLink provides limited benefit.

NUMA Optimization for Multi-GPU Systems

Multi-socket servers create separate memory controllers per CPU, which affects how each graphics processing unit interacts with system RAM during AI workloads, deep learning, and machine learning.

When GPUs stay on the wrong NUMA node, memory access slows by 30–50%, reducing the efficiency of NVIDIA GPUs, AMD Radeon, and other modern GPUs used in artificial intelligence workflows. Hence, understanding NUMA prevents hidden bottlenecks that undermine GPU capacity and training stability.

How NUMA Topology Impacts GPU Performance

NUMA defines which memory controller a GPU uses, and GPUs connected to the remote CPU socket experience higher latency during computationally demanding tasks.

You can inspect this using:

• nvidia-smi topo -m (GPU to CPU affinity map)
• numactl –hardware (NUMA node and memory layout)

When NUMA is misaligned, AI models, graphics, images, and data move across sockets, slowing execution across all systems involved in parallel processing.

NUMA-Aware Scheduling for Training & Inference

NUMA-aware scheduling aligns GPUs with the correct CPU socket to maintain peak performance for fine-tuning, tensor parallelism, and multi-GPU training.

Here are some of the most common patterns:

• Single-node training: Pin processes to GPUs 0–3 on socket 0
• Multi-node training: Use NCCL bindings for optimized packet routing
• Inference: RR placement works when communication remains low

The right scheduling helps workstations, servers, and high-end computers maintain stable throughput during handling data-intensive workloads.

NUMA Requirements by System Size

The system size determines whether NUMA impacts your hardware layout and overall performance.
Single-socket platforms avoid NUMA entirely, while dual-socket builds must bind GPUs correctly to avoid reduced throughput.

Here’s a quick planning table at your disposal:

See Also: How to Set Up and Optimize GPU Servers for AI Integration

Storage Throughput Requirements

The storage throughput determines how fast your AI workloads move data between NVMe drives, the graphics processing unit, and system RAM during training, inference, and checkpointing. Slow storage can stall NVIDIA GPUs, limit GPU capacity, and lower performance, even when the hardware is strong.

Therefore, aligning throughput with AI models, datasets, and work patterns will help you establish a stable operation across deep learning, ML, and handling data-intensive tasks.

Critical AI Storage Patterns

AI systems rely on three primary storage behaviors, each with different bandwidth expectations that affect modern GPUs and multi-GPU workstations.

Model Loading:

Model loading requires pulling large AI models from disk into VRAM. Loading a 70B model with 140GB of weights should target under 30 seconds, which translates to roughly 5 GB per second of sustained throughput. A single NVMe Gen 4 drive provides 3–7 GB per second, which remains suitable for most NVIDIA and AMD training setups.

Dataset Streaming:

Dataset streaming demands continuous disk reads during training. A workload example is 128 images multiplied by 2MB each, multiplied by a 1.5 augmentation multiplier, divided across a 0.5-second step time, resulting in roughly 768 MB per second of bandwidth demand. LLM pre-training rarely exceeds 100 MB per second, since tokenized sequences impose lighter I/O pressure on storage components.

Checkpoint Saving:

Checkpoint saving writes model states back to disk. So, a 70B checkpoint approaches 420GB when combining weight files and optimizer states, which requires high-throughput RAID configurations to avoid long write delays that interrupt workflow execution.

See Also: What is RAID?

ServerMania Storage Recommendations

ServerMania provides configurations tailored to teams that need reliable NVMe setups for artificial intelligence workloads.

• Starter: Single 2TB NVMe Gen 4, suitable for inference and smaller AI & ML workloads.
• Balanced: 2× 2TB NVMe in RAID 0 for faster model loading and regular training cycles.
• Performance: 4× 4TB NVMe in RAID 0 for 8-GPU clusters and heavy training workflows.

Architecture Decision Framework

Choosing the right platform is fundamental and shapes how your team trains AI models, scales GPU workloads, and maintains reliable dedicated graphics processing across projects.

Each architecture supports different workflow patterns in scientific computing, content creation, and research, and each offers a path to enhanced performance under your operating system and needs.

Workstation (PC)

Workstations fit 1–5 person teams that need local compute and fast iteration across diverse fields such as scientific computing, content creation, and work done by data scientists.

These systems pair GPUs from NVIDIA Corporation or AMD with high-power CPUs and a motherboard, giving your team steady output for AI workloads and graphics rendering.

A typical setup includes a Threadripper PRO, 256GB system RAM, 4TB NVMe, and RTX 6000, suitable for training any smaller models and running AI or ML algorithms that process a vast number of samples.

Cloud Server

The cloud servers suit 5–15-person teams that need scalable compute and shared access to enterprise GPUs for heavier workloads. These systems support unified memory architectures, as well as big RAM footprints, and high-throughput NVMe RAID, so your team runs distributed training without bottlenecks.

A common configuration includes dual EPYC, 8 L40S, and 768GB RAM, offering good performance for AI workloads that evolve from past experiments into present deployments. Cloud platforms help teams play with new ideas while controlling cost and adapting to other factors, such as remote collaboration.

Dedicated Server

Dedicated servers support enterprise groups that require consistent throughput, full hardware control, and stable scaling for long-running AI and scientific computing workflows.

These systems deliver isolated resources with L4 GPUs, high-bandwidth storage, and 512GB–1TB system RAM, forming a dependable base for algorithms that process large datasets or train complex models. A typical build uses dual Intel Xeon or dual EPYC optimized for multi-GPU performance across a world of demanding workloads.

Hence, dedicated servers work best for organizations that need reliability, compliance alignment, and predictable operation for present and future growth.

See Also: Cloud vs Dedicated GPU Servers for Machine Learning

Dedicated Graphics Processing With ServerMania

ServerMania provides your team with clear guidance across workload evaluation, cost planning, and architecture selection so you deploy GPU infrastructure that matches your training needs, scales with your AI workloads, and delivers consistent value over time.

By aligning hardware with real model behavior, storage throughput, and operational requirements, we help you build platforms that support enhanced performance, reduce any waste, and accelerate progress across AI, machine learning, and research projects.

The ServerMania Advantage

• Expert planning support that aligns GPU choices with workload size, resource demand, and cost efficiency.
• Access to NVIDIA Corporation and AMD GPU configurations for scientific computing and deep learning workflows.
• High-bandwidth storage options designed for fast model loading, dataset streaming, and checkpoint operations.
• Flexible architectures that scale from workstation-style builds to multi-GPU rack servers for diverse fields.
• Strong operating system support and optimization guidance for training stability and workflow consistency.
• Global infrastructure footprint that maintains low latency and reliable uptime for production environments.
• 24/7 access to GPU specialists who help you tune performance, control budget, and avoid configuration pitfalls.

See Also: What is a GPU Dedicated Server?

How to Get Started

1. Explore ServerMania’s low-cost NVIDIA GPU Servers, including high-memory and multi-GPU options for training and inference.
2. Speak with ServerMania’s 24/7 GPU Server Experts, who evaluate your workload patterns and tools, or schedule a free consultation.
3. Place your order and deploy, receiving a fully optimized system built to support your models, datasets, and long-term operational goals.
