How to Set Up Secure Token Authentication for Video Streaming

What Is Secure Token Authentication

Token authentication is a method used to determine who can view/access your video content. Secure token authentication for video streaming generates a temporary, unique token for each user request that is validated by a server or CDN before streaming begins.

Tokens include strict expiration times, user-specific data, and/or IP constraints to prevent unauthorized access and sharing. Token-based authentication allows content owners to restrict access to videos based on user authentication, ensuring that only the authorized users can view the content, which is particularly useful for subscription-based services.

In short, secure token authentication ensures only authorized viewers can watch content, acting as a gatekeeper between the user and the video source.

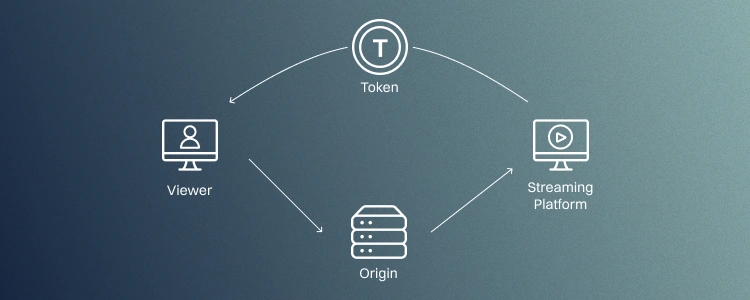

How Token Authentication Works

The token-based authentication system begins whenever a user requests a particular video from the video platform system. The token generation takes place by creating a user-specific token using a private key or signing key. The token contains data such as video ID, IP addresses, user agent, and expiration times, based on which the streaming system assigns a safe playback URL or stream URL.

Then, the token is validated against its cryptographic signature and expiration time to grant or deny access to the video. Token authentication systems are stateless, meaning they do not require tracking active sessions in a database, reducing server load. These tokens are short-lived and often expire in minutes, making them useless for unauthorized sharing.

Authorization can be granular, allowing tailored access like rentals that automatically expire after a predetermined time. Therefore, using short-lived tokens limits potential misuse and employs refresh tokens for longer sessions.

Note: Stateless authentication methods reduce the burden on backend servers, making the system highly scalable for a large number of users.

How to Set Up Secure Token Authentication for Video Streaming

To secure your video streaming, you need a system that grants access under strict conditions and serves only the video requested without exposing the full video data. We’ve prepared a step-by-step guide to build, validate, and enforce a setup that controls access at every stage of streaming delivery.

See Also: How to Set Up Multi-stream with Restream

Step 1: Secure Delivery with HTTPS

HTTPS (Hypertext Transfer Protocol Secure) encrypts the connection between the viewer’s browser and the server, protecting data in transit and ensuring that sensitive information is not exposed during video streaming.

Using HTTPS is particularly important on public or unsecured networks, such as those in cafés or airports, where ‘man-in-the-middle’ attacks are more likely to occur, potentially hijacking streams or injecting malicious content. Tokens should ideally be transmitted over secure connections (HTTPS) to prevent interception during requests.

Most professional video hosting and streaming platforms now enforce HTTPS by default, which not only protects viewers but also improves SEO rankings for the content being delivered.

1.1 Configure SSL/TLS on Origin Server

First, you need to install an SSL certificate from a trusted provider or simply use “Let’s Encrypt.” This happens through the main server config:

For NGINX:

• Enable: listen 443 ssl
• Define: ssl_certificate and ssl_certificate_key

We recommend disabling other weak protocols, such as TLS 1.0 and 1.1

1.2 Force HTTPS for ALL Video Requests

The next step is to redirect all your traffic from HTTP to HTTPS by using simple 301 redirects. This ensures HTTPS is forced upon all the requests. Here’s an example with NGINX:

server {
  listen 80;
  return 301 https://$host$request_uri;
}

The goal here is to prevent your streaming platform to explose any HTTP video links. At the CDN level, you must also enable HTTPS-only delivery. When this is ready, we advise using DevTools to ensure that there are no HTTP calls. You must ensure there is no token leakage or potential room for interception.

Also, avoid storing authentication tokens in local storage due to vulnerabilities; instead, use in-memory or secure HTTP-only cookies.

See Also: CDN Configuration Guide

Step 2: Generate Secure Tokens

The token generation process is critical and must be reliable to prevent potential issues. Each request for URL should be able to trigger this process automatically. Except that tokens must be short-lived to enhance access control, you also need to define other rules, like IP restrictions and domain restrictions.

Token-based authentication prevents unauthorized sharing since tokens are often tied to a user’s IP address and include an expiration. This way, no unauthorized viewing or unauthorized sharing will happen.

How to Implement Token Generation:

To implement a token generation, you can use a simple architecture: an API for token generation, a CDN or origin for validation, and a player for requests. We recommend using Node.js, Python, or Go. For our example, we’re going to use Node.js because of its simplicity:

Install dependency:

npm install jsonwebtoken

Then create the endpoint, using this example structure:

Header:
{
  "alg": "HS256",
  "typ": "JWT"
}
Payload:
{
  "video_id": "456789",
  "exp": 1710000000,
  "ip": "192.168.0.0",
  "ua": "Chrome"
}

Here’s how this structure looks with the jsonwebtoken library:

const jwt = require("jsonwebtoken");
const SECRET = process.env.SIGNING_KEY;
function generateToken(req, res) {
  const payload = {
    video_id: req.query.video_id,
    ip: req.ip,
    ua: req.headers["user-agent"]
  };
  const token = jwt.sign(payload, SECRET, {
    expiresIn: "5m"
  });
  const playbackUrl = `https://cdn.example.com/stream.m3u8?token=${token}`;
  res.json({ url: playbackUrl });
}

If you’re using a CDN like Cloudflare or AWS, make sure to enable signed URLS, define the expiration rules, and bind tokens to IP or headers. Here’s an example:

https://cdn.yourplatform.com/hls/video.m3u8?token=467qwerty

From here on, on every single URL request, the server or CND should validate the token. This generally means inspecting the signature or whether the token has expired. When this validation fails, the system will automatically block the access momentarily.

Step 3: Set Up Tokenized & Signed URLs

Now your backend is generating tokens, so you’re ready to attach them to every video URL the viewers can access. For this purpose, we’re going to use signed URLs and tokenized URLS. This way, instead of offering a raw stream URL, you’re going to provide a protected playback URL with a signed URL token.

To do it the right way, the token must travel with absolutely every request, including video segments in HTTP Live Streaming. Therefore, if somebody tries to copy the video link, it will fail as the token expires.

To begin with, start by generating a signed playback URL that includes your token as a query and leads to your CDN or origin. Setting up tokenized or signed URLs works differently for every CDN provider:

If you use AWS CloudFront:

With AWS CloudFront, you must first enable “signed URLs“. Then, it will allow you to create a key pair in AWS, to be able to store the private key securely on your backend. Then you can play around with the policy to control access, but don’t forget to include the expiration time and some optional IP restrictions.

Then, what happens is the following:

• Your backend signs the URL using the private key and attaches the signature, key pair ID, and expiration as query parameters.
• CloudFront validates the request at the edge before serving any video segments, so unauthorized requests never reach your origin.

If you use Cloudflare:

If you use Cloudflare, the setup happens at the edge using token authentication or URL signing rules. You must first set up the validation rule that inspects the signed URL token on every single request. So, this rule can later enforce the expiration time.

Once enabled, Cloudflare blocks any request that does not include a valid token, which prevents direct access to your video data even if someone tries to reuse the video link.

⚠️ NGINX Validation:

Don’t forget that on your origin server, you still need a fallback validation layer. You can use modules like “secure_link” to verify the token and expiration.

Note: These signed URLs can be combined with other security measures, such as DRM, to provide a comprehensive protection strategy for video content, controlling both access and content security.

Step 4: Enable Video Stream Encryption

During the delivery, your platform still exposes raw video data, even when the access is protected with tokenized security. Encryption is a core part of video streaming security, ensuring that your content is delivered over the internet without exposing it to unauthorized access by converting video data into an unreadable format during transmission.

Stream encryption, also known as AES encryption, means that downloaded segments are scrambled and require a cryptographic key for decryption, adding a layer of security to video content delivery.

AES (Advanced Encryption Standard) is one of the most trusted methods for protecting video content, scrambling video data using a unique decryption key, making it completely inaccessible without a key.

🔐 Stream Encryption Implementation:

What happens in practise? Each video segment is encrypted with AES before it gets delivered to your viewers. The “.m3u8” playlist has no raw content in it. The idea is for this content to point to the specific encrypted segments that only contain data about the decryption key.

To achieve it, you must enable encryption at the origin level. So, if you use FFmpeg, it’s easy to encrypt your HLS output during the encoding process:

ffmpeg -i input.mp4 \
  -hls_time 6 \
  -hls_key_info_file key_info.txt \
  -hls_playlist_type vod \
  output.m3u8

The key_info.txt should include:

https://yourplatform.com/key
/path/to/local/key
08678582834526avsgwf0947761533qwerty

In your .m3u8 playlist, you will see:

#EXT-X-KEY:METHOD=AES-128,URI="https://yourplatform.com/key"

This line tells the player where to request the decryption key. The player downloads encrypted video segments, then uses the key to decode them during video playback.

Step 5: Integrate DRM Protection

Token authentication is often used alongside DRM and AES Encryption to protect against content theft. Digital Rights Management (DRM) is currently the most secure way to deliver digital content over the internet, as it separates the decryption key from the content and manages the full decryption flow in a secure environment.

The common DRM protocols include Google’s Widevine, Apple’s FairPlay, and Microsoft’s PlayReady, each with its own device ecosystem and playback rules. Modern DRM systems integrate directly into video streaming workflows, particularly for premium Video on Demand (VOD) platforms, e-learning ecosystems, and corporate training networks.

How to Implement DRM Protection:

First, you need to begin by packaging your content through DRM support. You can use tools like Shaka Packager, AWS MediaPackage, or even Bitmovin.

packager \
  input=input.mp4,stream=video,output=output.mpd \
  --enable_widevine_encryption \
  --key_server_url https://license-server.com \
  --content_id 12345 \
  --signer signer_name \
  --aes_signing_key <key> \
  --aes_signing_iv <iv>

The next step is to configure the DRM license server for your video streaming platform. You can use any services like Google Widevine Cloud, Azure Media Servicees or BuyDRM. This allows you to define all the playback rules, such as expiration, device limits, and restrictions.

When everything is set up and configured, you can implement the DRM into your player by using Shaka Player, Video.js, or Bitmovin player. Here’s an example with Shaka Player:

player.configure({
  drm: {
    servers: {
      "com.widevine.alpha": "https://license-server.com/widevine"
    }
  }
});

The final step is to connect the DRM to your existing token system.

Note: DRM not only scrambles the video data but also embeds strict playback rules within the stream, determining where, how long, and under what circumstances the video can be played.

Step 6: Apply Access Control Layers

Implementing secure token authentication requires a multi-layered approach combining encrypted tokens and robust CDN enforcement. Origin protection is essential for video streams, as it prevents unauthorized users from accessing content by copying the video URL and using it on their own players.

At this point in the process, the token-based systems already handle multi-factor authentication and secure video delivery. The next step is to add much stricter security layers to ultimately prevent content theft, unauthorized viewing, and unauthorized sharing.

These layers go beyond the basic validation process that we’ve already established. The primary goal here is to force the platform to still enforce some strict access rules, even when a valid token exists.

The Key Implementations:

If we have to summarize the access control layers, they would include:

• The first configuration must either be done on a CDN level or at the origin server. Use NGINX or a firewall to ONLY allow CDN traffic to your stream URLs.
• Then, enforce strict token validation, which must include expiration time, IP restrictions, blocked requests, and prevent access when the conditions fail.
• You can also add “device behavior checks” at the CDN level, which monitor playback patterns, user agent data, and even prevent screen recording.
• Apply stronger protection, such as multi-factor authentication at the application or authentication layer for premium content or sensitive on-demand content.

Note: Geographical restrictions, or geo-blocking, help control access to video content based on the viewer’s location, which is useful for licensing compliance and reducing piracy.

Step 7: Monitor Token Usage and Security

After your token-based authentication system is live and running, one of the last steps is to establish a monitoring system to detect abuse and prevent failures. Monitoring for abnormal token usage patterns can help identify potential security threats.

Every request tied to a JSON Web Token must be logged and analyzed, including the playback ID, IP, and session behavior. This allows you to track how users watch the content and identify weird patterns.

Here are the best practises when it comes to monitoring:

• Repeated request detection, especially from different locations using the same token, is a clear signal of URL sharing, making the token remain valid.
• Analyze unusual traffic spikes or repeated failures, as these may indicate replay attacks or even attempts to exploit weak validation logic.
• Monitoring of access patterns for sensitive content like internal training videos, where abnormal behavior may point to insider risks or early signs of data breaches.
• Set alerts in your CDN, logging system, or SIEM tools, so your team gets notified when activity crosses defined thresholds, making it easier to react before issues escalate.

If you implement all these monitoring practises into your transport layer security pipeline, it’s virtually impossible for anyone to misuse your platform without being caught. Strong monitoring guarantees early issue detection in encryption protocols and restricts any further requests or playback sessions.
